| Product Name | PVC Threaded True Union Ball Valve |
| Main Material | UPVC |
| Size range | 1 inch~4 inch |
| Color of valve | Dark Grey /Blue/White |
| To connect | Socket/thread/flange/thread |
| Pressure range | 1.0mpa~1.6mpa |
| Application | General |
| Accord to | DIN, BS, ANSI, CNS; NPT, BSPT, JIS |
| Certificates | SGS,CE, NSF, ISO14001,ISO9001 |
| Joints | Rubber Ring Joints / Solvent Welding Joints/thread joints |
| Application | wastewater treatment, chemical industry, portable water |

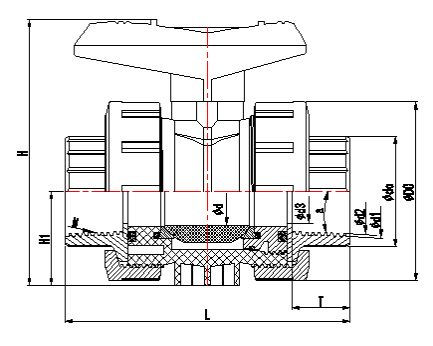

(DIN)VALVE
| Dimension（mm） |
Working Pressure (kg/c?) |
||||||||||||
| Size DN（De） | D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L | M | a° | |
| 15(20) | 51.50 | 30.43 | 20.95 | 18.63 | 16.00 | 15.50 | 26.30 | 82.80 | 17.00 | 95.50 | 1/2" | 3.58 | 10 |
| 20(25) | 59.00 | 36.30 | 26.44 | 24.12 | 20.60 | 20.50 | 30.60 | 92.80 | 19.50 | 109.10 | 3/4" | 3.58 | 10 |
| 25(32) | 70.00 | 44.61 | 33.25 | 30.29 | 26.00 | 26.00 | 39.10 | 109.20 | 23.00 | 122.60 | 1" | 3.58 | 10 |
| 32(40) | 85.40 | 53.87 | 41.91 | 38.95 | 33.00 | 33.00 | 44.20 | 131.80 | 27.00 | 147.30 | 1-1/4" | 3.58 | 10 |
| 40(50) | 98.90 | 61.12 | 47.80 | 44.85 | 39.00 | 39.00 | 52.20 | 143.20 | 32.00 | 158.80 | 1-1/2" | 3.58 | 10 |
| 50(63) | 122.20 | 73.83 | 59.61 | 56.66 | 51.00 | 51.00 | 71.30 | 175.70 | 38.50 | 182.80 | 2" | 3.58 | 10 |
| 65(75) | 158.60 | 87.71 | 75.18 | 74.23 | 64.00 | 64.00 | 82.80 | 231.50 | 44.50 | 234.00 | 2-1/2" | 3.58 | 10 |
| 80(90) | 192.10 | 106.81 | 87.88 | 84.93 | 81.00 | 81.00 | 99.30 | 260.60 | 52.00 | 255.00 | 3" | 3.58 | 10 |
| 100(110) | 223.60 | 133.46 | 113.03 | 110.07 | 99.00 | 99.00 | 115.20 | 292.10 | 62.00 | 297.00 | 4" | 3.58 | 10 |
(ASTM)VALVE
| Dimension（mm） |
Working Pressure (kg/c?) |
||||||||||||
| Size（"） | D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L | M | a° | |
| 1/2" | 51.50 | 30.43 | 20.95 | 18.63 | 16.00 | 15.50 | 26.30 | 82.80 | 17.00 | 95.50 | 1/2" | 3.58 | 10 |
| 3/4" | 59.00 | 36.30 | 26.44 | 24.12 | 20.60 | 20.50 | 30.60 | 92.80 | 19.50 | 109.10 | 3/4" | 3.58 | 10 |
| 1" | 70.00 | 44.61 | 33.25 | 30.29 | 26.00 | 26.00 | 39.10 | 109.20 | 23.00 | 122.60 | 1" | 3.58 | 10 |
| 1-1/4" | 85.40 | 53.87 | 41.91 | 38.95 | 33.00 | 33.00 | 44.20 | 131.80 | 27.00 | 147.30 | 1-1/4" | 3.58 | 10 |
| 1-1/2" | 98.90 | 61.12 | 47.80 | 44.85 | 39.00 | 39.00 | 52.20 | 143.20 | 32.00 | 158.80 | 1-1/2" | 3.58 | 10 |
| 2" | 122.20 | 73.83 | 59.61 | 56.66 | 51.00 | 51.00 | 71.30 | 175.70 | 38.50 | 182.80 | 2" | 3.58 | 10 |
| 2-1/2" | 158.60 | 87.71 | 75.18 | 74.23 | 64.00 | 64.00 | 82.80 | 231.50 | 44.50 | 234.00 | 2-1/2" | 3.58 | 10 |
| 3" | 192.10 | 106.81 | 87.88 | 84.93 | 81.00 | 81.00 | 99.30 | 260.60 | 52.00 | 255.00 | 3" | 3.58 | 10 |
| 4" | 223.60 | 133.46 | 113.03 | 110.07 | 99.00 | 99.00 | 115.20 | 292.10 | 62.00 | 297.00 | 4" | 3.58 | 10 |

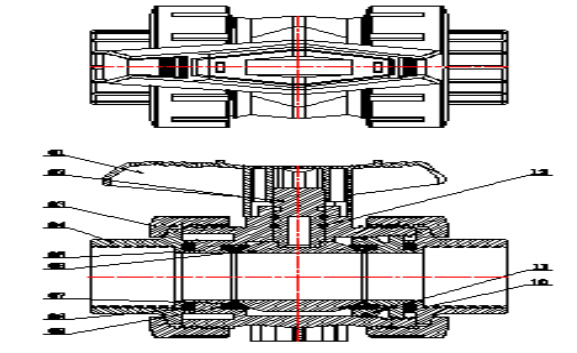

MATERIAL TABLE
| No. | Parts | Quantity | Material | |
| 01 | Lever | 1 | PVC-U/PP+GF30% | |
| 02 | Shaft | 1 | PVC-U/PVC-C | |
| 03 | Nut | 2 | PVC-U/PVC-C | |
| 04 | Threaded Faucet | 2 | PVC-U/PVC-C | |
| 05 | Body | 1 | PVC-U/PVC-C | |
| 06 | Ball | 1 | PVC-U/PVC-C | |
| 07 | Ball seat | 2 | PTFE/TPE+PP | |
| 08 | O-ring1 | 2 | EPDM/FPM | |
| 09 | O-ring2 | 2 | EPDM/FPM | |
| 10 | Seal-Carrier | 1 | PVC-U/PVC-C | |
| 11 | O-ring3 | 1 | EPDM/FPM | |
| 12 | O-ring4 | 2 | EPDM/FPM | |
Packing Details
| No | Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
| 1 | Socket/Threaded True union ball valve | DN15 | 81 | 171.86 | 48.5 | 36 | 32 |
| 2 | DN20 | 60 | 257.99 | 48.5 | 36 | 32 | |
| 3 | DN25 | 57 | 411.33 | 53 | 38 | 38 | |
| 4 | DN32 | 30 | 663.26 | 53 | 38 | 38 | |
| 5 | DN40 | 20 | 1003.42 | 53 | 38 | 38 | |
| 6 | DN50 | 12 | 1670.19 | 53 | 38 | 38 | |
| 7 | DN65 | 6 | 3931.18 | 53 | 37 | 51.5 | |
| 8 | DN80 | 4 | 5680.18 | 57 | 42 | 39 | |
| 9 | DN100 | 2 | 8726.96 | 55 | 45 | 32 |
Size details for PVC-U/PVC-C pipe according to ASTM F441
| Nominal pipe size | Outsize diamater | Norminal wall thickness | ||
| SCH40 | SCH80 | |||
| DN15 | 1/2" | 21.34 | 2.77 | 3.73 |
| DN20 | 3/4" | 26.67 | 2.87 | 3.91 |
| DN25 | 1" | 33.40 | 3.38 | 4.55 |
| DN32 | 1-1/4" | 42.16 | 3.56 | 4.85 |
| DN40 | 1-1/2" | 48.26 | 3.68 | 5.08 |
| DN50 | 2" | 60.32 | 3.91 | 5.54 |
| DN65 | 2-1/2" | 73.02 | 5.16 | 7.01 |
| DN80 | 3" | 88.90 | 5.49 | 7.62 |
| DN100 | 4" | 114.30 | 6.02 | 8.56 |
| DN125 | 5" | 141.30 | 6.55 | 9.52 |
| DN150 | 6" | 168.28 | 7.11 | 10.97 |
| DN200 | 8" | 219.08 | 8.18 | 12.70 |
| DN250 | 10" | 273.05 | 9.27 | 15.06 |
| DN300 | 12" | 323.85 | 10.31 | 17.45 |
| DN350 | 14" | 355.60 | 11.10 | 19.05 |
| DN400 | 16" | 406.40 | 12.70 | 21.41 |
